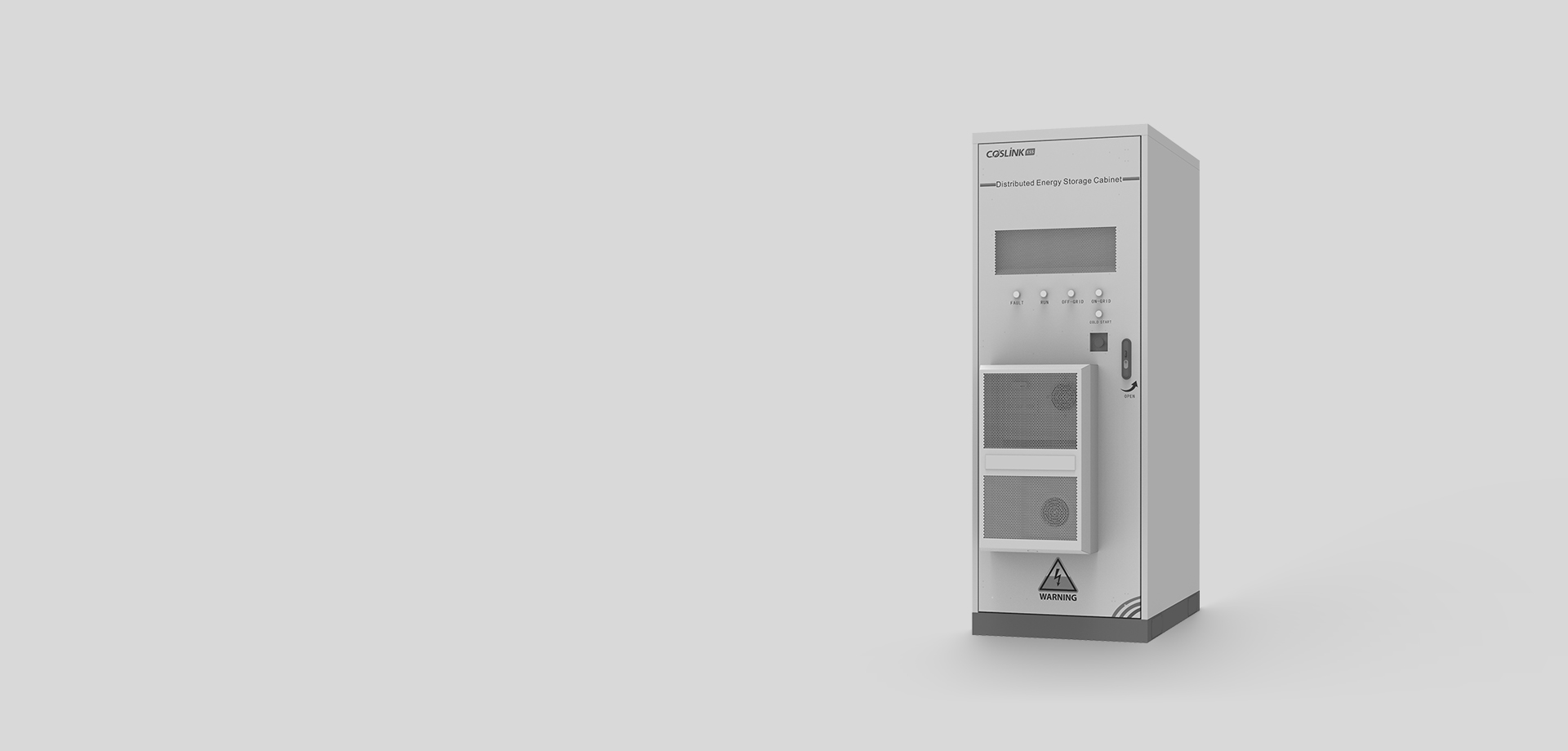

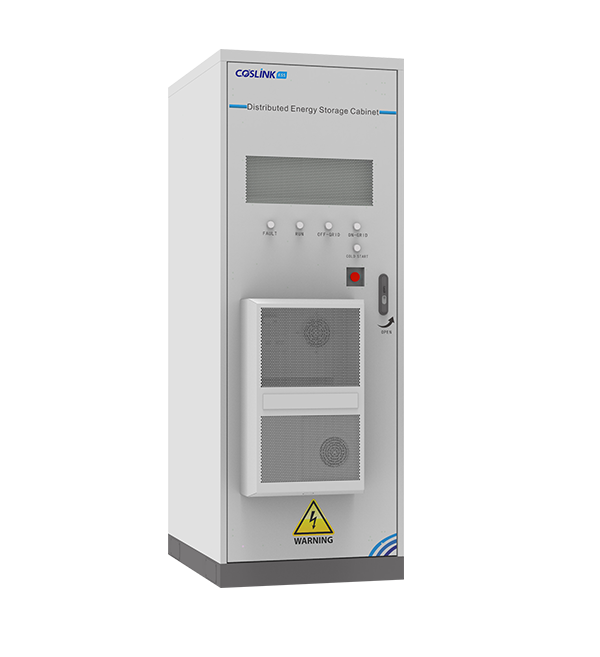

EnerMax-C&I series distributed energy storage outdoor cabinet adopts all-in-one design, the product adopts integrated and modular assembly design concept, and highly integrates the local EMS system, energy storage inverter system, battery system, temperature control system, and fire protection system in an independent IP54 outdoor cabinet, which can be flexibly installed in indoor and outdoor environments. It supports grid-connected scenarios, and users can flexibly configure the system according to the actual application scenarios.
A single cabinet integrates all energy storage equipment
Support of multiple scene applications
Compatible with photovoltaic and energy storage converters
Local EMS monitors the operation of the energy storage system in real time, with a built-in secondary aerosol fire protection system
1. Peak shifting to alleviate the contradiction between peak and valley electricity consumption.
2. Smart control to improve the power quality of the power grid.
3. Off-grid backup power can be used as a large-scale uninterruptible power supply to solve the problem of power consumption in remote areas.
Rated capacity [Ah] | 100 |
Rated Voltage [V] | 512 |
Rated capacity [kWh] | 51.2 |
Max. Continuous Charge Current [A] | 100 (0.5C) |
Max. Continuous Discharge Current [A] | 100 (0.5C) |
Temperature Range [℃] | -20~60℃ |
Cooling | Forced air cooling |
Noise | 70 dB |
Communication | Ethernet, RS485, CAN |
Dimensions [W*D*H, mm] | 800*950*2200 |
IP Grade | IP54 |
Firefighting | Aerosol |
Isolation | 3W+N+PE |
Fire Fighting | Aerosol |
