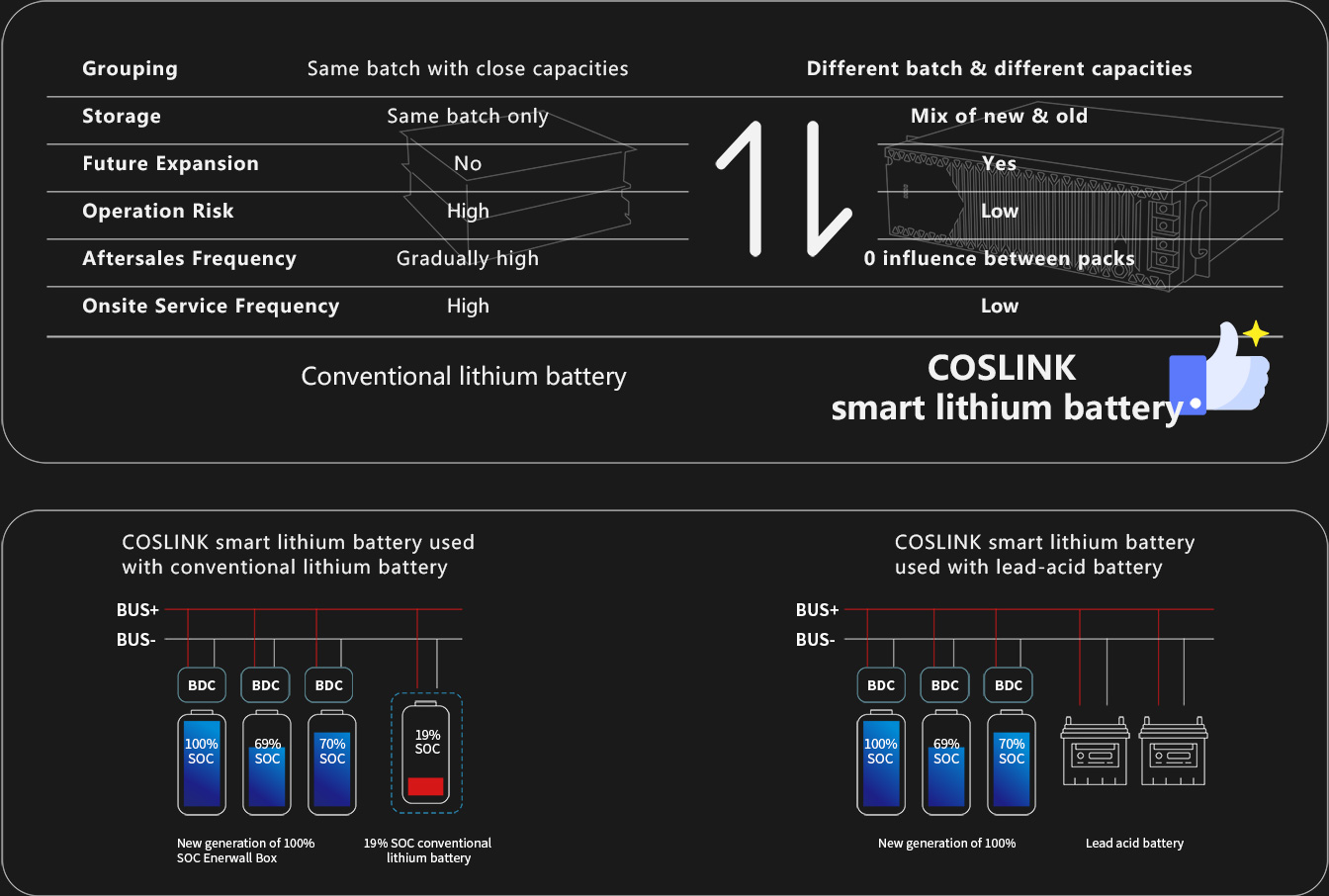

New-generation smart lithium
battery (ActivePack)
Up to 30 packs in
parallel
One of the first 3 suppliers
worldwide

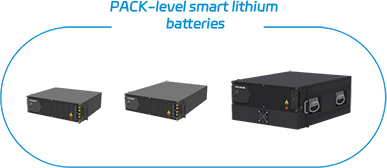

Complete product line of
smart lithium batteries
with flexible management
CATL and other tier-1 cell manufaturers
6000+ cycle times
Multiple certifications
Insultation between cells and BMS
Built-in aerosol fire-proof module and high-temp detection line
Cell-level protection circuit, protections of over-voltage, over-current, over-charging, over-discharging, short-circuit, overload, over-temperature, and active balancing
DC 500V-resistance and 1500V insulation electrical design
Cell-, pack-, and system-level temperature detection and control
Optimized heat dissipation design and automatic fan for battery pack
Power limitation design
Systematic temperature detection for automatic switch to optimal operation strategy

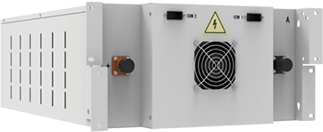

| Product | 5G Micro Base Station Power Supply |
| Rated capacity [Ah] | 48V50 |
| Specifications | Power module: TP48V2K/TP48V3K Battery module: BS48V50Ah |
| Communication | RS485, CAN |
| Dimensions [W*D*H, mm] | Power module: 300*93*420 Battery module: 300*155*420 |
| Weight [kg] | Power module: ≤ 9 Battery module: ≤ 30 |
| Feature | 1.Easy installation for fast deployment 2.Support of local APP monitoring, zero onsite maintenance required 3.Support of various installation scenarios such as pole mounting, wall mounting, etc 4.Support of mixed use with lead-acid, recycled and conventional batteries |

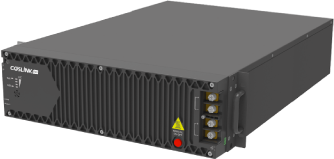

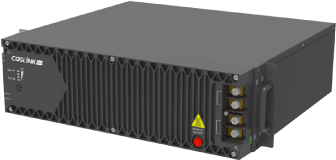

| Product | EnerSmart BS48V100 Lithium Battery |
| Rated capacity [Ah] | 100 @0.5C, 25ºC |
| Specifications | 48V100Ah, embedded with BMS and BDC modules |
| Communication | RS485 *2, CAN*2, dry contact*2 |
| Dimensions [W*D*H, mm] | 442*400*130.5 (without brackets） |
| Weight [kg] | 39 |
| Feature |
1. Support of mixed use with lead-acid or 2. Multiple operating modes: peak-shaving mode, peak-shifting mode, constant voltage output |
| Product | EnerSmart BS48V150 Lithium Battery |
| Rated capacity [Ah] | 150 @0.5C, 25ºC |
| Specifications | 48V150Ah, embedded with BMS and BDC modules |
| Communication | RS485 *2, CAN*2, dry contact*2 |
| Dimensions [W*D*H, mm] | 442*560*130.5 (without brackets） |
| Weight [kg] | 58.5 |
| Feature |
1. Support of mixed use with lead-acid or 2. Multiple operating modes: peak-shaving mode, |

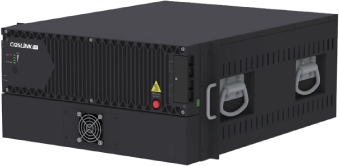

| Product | EnerSmart BS48V200 Lithium Battery |
| Rated capacity [Ah] | 200@, 0.35, 25ºC |
| Specifications | 51.2V200Ah, embedded with BMS and BDC modules |
| Communication | RS485 *2, CAN*2, dry contact*2 |
| Dimensions [W*D*H, mm] | 442*560*220 (without brackets） |
| Weight [kg] | 82 |
| Feature |
1. Support of mixed use with lead-acid or 2. Multiple operating modes: peak-shaving mode, |
| Product | HNB51.2V280 |
| Battery type | LFP |
| Rated capacity [Ah] | 51.2 |
| Nominal capacity (Ah) @ .5C，25 ºC |
280 |
| Nominal energy (kWh) @ 0.5C，25 ºC |
14.3346 |
| Weight [kg] | 114 |
| Cycle life |
6000 times（25 ºC，0.5C， |
| Communication interface | RS485*1, CAN*1, Ethernet |
| Operating temperature |
-20~60 ºC |

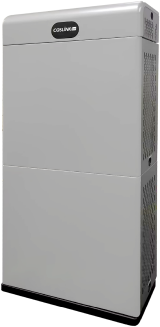

| Product | HEB7.68-HV |
| Battery type | LFP |
| Rated energy [kWh] | 7.68kWh |
| Output power [W] | 5000W |
| Output voltage | 400V (300-450V can be set) |
| Dimensions [W*D*H, mm] | 573*189*597 (Multiple stacks can be connected in parallel) |
| Weight [kg] | 65 |
| Cyele life | 6000 times (25 ℃, 0.5C, 80% DOD) |
| Communication | RS485 / CAN / dry contact |

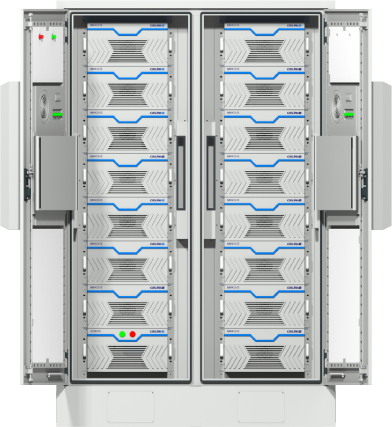

| Product | CB215-0.5C | Charging temperature range (℃) | 0～45℃ |
| Rated capacity [Ah] | 280 | Discharging temperature range (℃)/td> | -20～60℃ |
| Nominal voltage (V) | 768V | Cluster operating temperature range (℃) | 20～30℃ |
| Nominal energy (kWh) | 215 | Storage humidity | 60± 25% RH (non-condensing) |
| Maximum depth of discharge (DOD) | ≤90% | Communication | CAN2.0, RS485 |
| Maximum continuous charging current (A) | 140 | Communication | CAN2.0, RS485 |
| Charge cut-off voltage (V) | 850 | Weight [kg] | ～1950 kg |
| Maximum continuous discharge current (A) | 140 | IP Grade | IP54 |
| Discharge cut-off voltage (V) | 670 | Fire proof | Aerosol |
| Dimensions [W*D*H, mm] | 1500*950*2200 |
